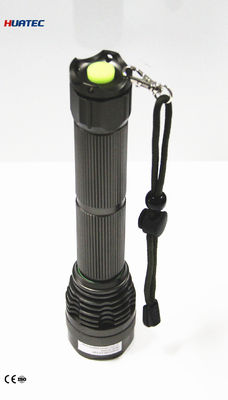

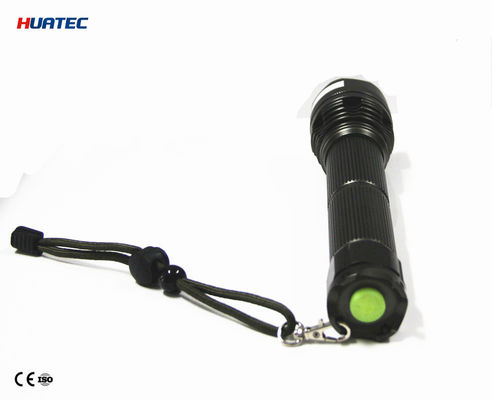

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Large Image : DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-3W

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Description

Style:	Torch Style	UV(Light)-FLUX Indoor Temperature 25℃:	Spotlight Type>10000uw/cm2 Astigmic Type>2500uw/cm2
FLUX Error:	0-40℃ ±10%	Power Supply:	AC100-240V 50/60Hz
Power:	UV LED-3VA	Wave Length:	Indoor Temperature 25℃ 365nm±3nm(UVA)
Charging Time:	2-3H	Battery Cumulative Time:	UV LED About 8H
Highlight:	365nm UVLED inspection lamp , high intensity NDT fluorescent lamp , 10000μW/cm² UVLED testing equipment

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Characteristic
Irradiance Spotlight type>10000uw/cm2
Astigmic type>2500uw/cm2
Light source life 30000H

Item	parameter
Style	torch style
UV(Light)-FLUX Indoor temperature 25℃	Spotlight type>10000uw/cm2 Astigmic type>2500uw/cm2
FLUX error	0-40℃ ±10%
Grading feature	Centre grading
Power supply	AC100-240V 50/60Hz
power	UV LED-3VA
wave length	Indoor temperature 25℃ 365nm±3nm(UVA)
Outline dimension	47mm*225mm
battery voltage	3.7V*2
Charging time	2-3H
Battery cumulative time	UV LED about 8H

Feature:
3AV power saving of power consumption
30000H life expectancy of light source
Imported light source UVLED
0 UV-B contained
Battery endurance 8hrs
Pre-alert and protection of low power
Weight 360g only including batteries
Build in battery,no wiring outside
three minute delay(power saving)//constand lighting,mode can be switched
continuous operation and external surface temperature rises less than 5 celsius
No need to preheat,instant to reach 100% power

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 0

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 1

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 2
