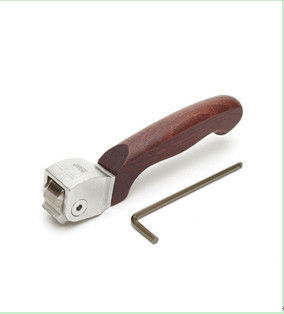

Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test

Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test
Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test

Large Image :  Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: Cross Hatch Cutter
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD65-USD90/SET
Packaging Details: ABS box+Outer carton packaging
Delivery Time: 1 month after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/YEAR
Contact Now

Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test

Description
Standard: ISO 2409-1974,GB/T9286-98 Multi-blade Cutters: 1mm,2mm,and 3mm
Highlight:

1mm cross hatch cutter

,

coating adhesion test blade

,

multi-blade non-destructive tester

Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test
Product Specifications
Standard ISO 2409-1974, GB/T9286-98
Multi-blade Cutters 1mm, 2mm, and 3mm
Product Description

The Cross Hatch Cutter is designed and manufactured in accordance with ISO 2409-1974 and complies with GB/T9286-98 standard. This instrument is primarily used for measuring the grid scratching adhesion of organic paints. Suitable for both laboratory use and various construction site conditions.

Available in three specifications of multi-blade cutters (1mm, 2mm, and 3mm) to accommodate different test conditions:

  • 1mm cutter: Suitable for test pieces with paint film less than 60μm
  • 2mm cutter: Suitable for test pieces with paint film of 60-100μm
Technical Specifications
No Standard Knife Edge Knife Knife Distance
H-5125 DIN/ISO 6 1 1mm (0.04inch)
H-5126 DIN/ISO 6 1 2mm (0.08inch)
H-5128 DIN/ISO 6 1 3mm (0.12ch)
H-5129 ASTM 11 1 1mm (0.04ch)
H-5130 ASTM 11 1 1mm (0.04ch) & 2mm two knifes changeable
H-5131 ASTM 11 1 1mm (0.04ch) & 2mm & 3mm three knifes changeable
H-5132 DIN/ISO 6 1 1mm (0.04inch) & 2mm two knifes changeable
H-5133 DIN/ISO 6 1 1mm (0.04inch) & 2mm & 3mm three knifes changeable

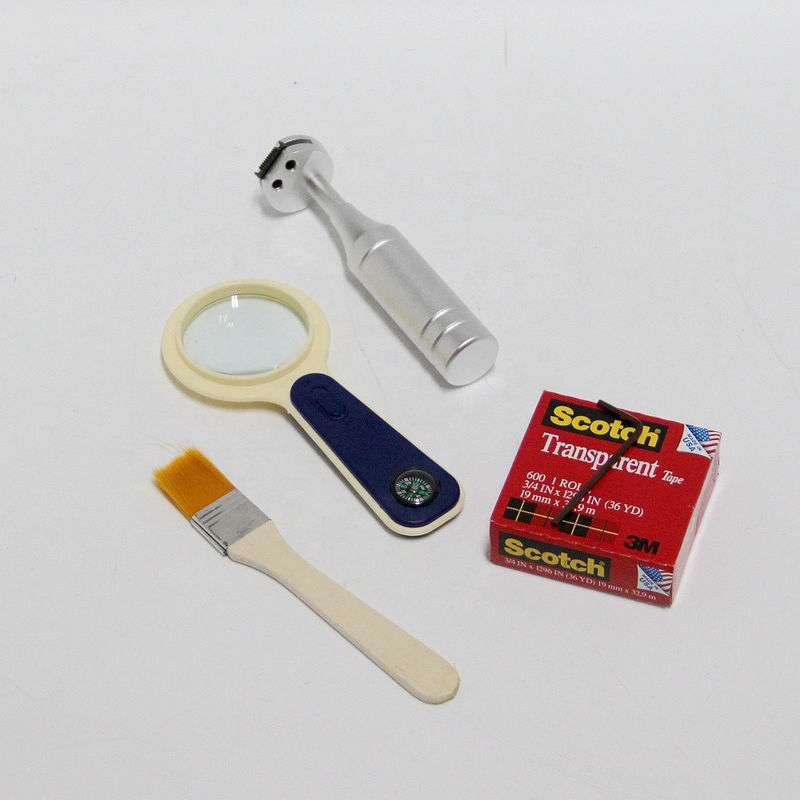

Available Models
  • The one knife, two knives for general use (1mm and 2mm)
  • The rotary three knives (1mm, 2mm, and 3mm)
  • The cylindrical four sides (1mm, 2mm)
Multi-Blade Cross Hatch Cutter 1mm 2mm 3mm for Coating Adhesion Test 0
