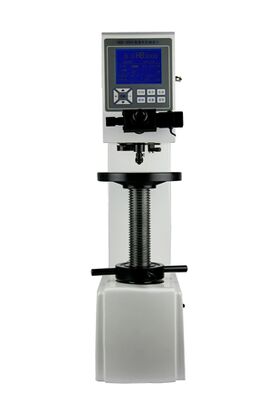

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory
HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory

Large Image :  HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HB-3000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD2070/set - USD2340/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Contact Now

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory

Description
Maximum Height Of The Test Piece: 220mm Minimum Unit Of Measure: 0.625µm
Time Of Protection: 5~60s Hardness Test Range: 8~650HBW
Indenter-outer Wall Distance: 135mm Total Magnification: 20X
Power Supply: AC220+5%, 50~60Hz
Highlight:

High Precision Brinell Hardness Meter

,

Automatic Loading Hardness Tester

,

Industrial Laboratory Hardness Testing Equipment

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory

Main Features:

HB-3000D Digital Brinell hardness tester with the latest development, has the domestic advanced water product of a new generation of Brinell hardness tester, the machine adopts electronic automatically add load, computer software programming, high rate of optical measurement, photoelectric sensors system. The operating process and the results of the trial data are available in large LCD display screen, the experimental results of data can be through the printer output.

Technical Specifications:

Model

HB-3000D

Brinell Scale

HBW2.5/62.5  HBW2.5/187.5  HBW5/125    HBW5/750    HBW10/100,

HBW10/1500  HBW10/3000   HBW10/250   HBW10/500   HBW10/1000

Testing Force

62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N)

Max Height of Specimen

200mm

Main Measuring unit

0.625µm

Net Weight

About 90kg

Power supply

AC220+5%,50~60Hz

Overall Dimension (mm)

550*210*750mm

Duration time

5~60s

Hardness testing Range

8~650HBW

Magnification of Microscope

20X

Carried Standard

GB/T231.2 Chinese Standard, JJG150 Inspection Rule

Distance of Indenter to outer wall

135mm

Indication of Hardness Value

LCD display, Printer Output, Inside Printer


Application areas:
Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,
Workpieces application:
Non-hardened steel, cast iron, non-ferrous metals, alloys bearing ,plates, sheets, motor blocks, rails, rings, bars, tires, wheels, castings

Standard Accessories:

Name

Quantity

Name

Quantity

Objectives 20x

1

Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter

Each 1

Standard Blocks

3

Large, Medium, “V” shaped Testing Table

Each 1

Power Cable

1

232 Cable

1

Manual

1

Product certificate, Printer Manual

Each 1








HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory 0

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory 1

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory 2
