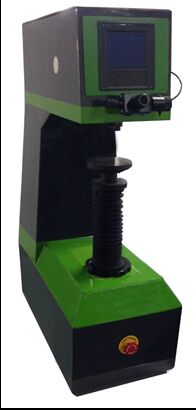

HB-3000DXP Digital Brinell Hardness Tester 31.25-3000Kgf Automatic Indentation Measurement

HB-3000DXP Digital Brinell Hardness Tester 31.25-3000Kgf Automatic Indentation Measurement

Product Features:

1. Load from 31.25Kgf to 3000Kgf
2. 10 kinds of measurement scale, customized
3. Electric load ,closed-loop control, automatic loading
4. Measuring indentation automatically with no need to focus
5. Hardness value display on screen, able to convert into other types of hardness value
6. Load automatic corrected,accuracy raise a number of levels
7. Hardness value automatic corrected according to different hardness block
8. Manual turret for customer’s easy operation,  600mm big space for sample
9. No need to install the weight, no need to regulate

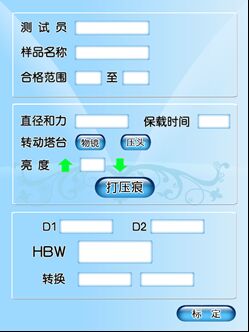

10. Touch screen interface,any language version
11. Save more samples and test information
12. Set the password protection
13. Data saved as EXCEL format through USB flash disk, edit and process easy
14. Modular design, simple maintenance
15. Available to upgrade to full automatic Vickers hardness tester
16. Application areas:
    Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,
    Workpieces application:
    Non-hardened steel, cast iron, non-ferrous metals, alloys bearing ,plates, sheets, motor blocks, rails, rings, bars, tires, wheels, castings

17.   0.1%.acuracy Better than normal Brinell hardness tester 1% (above 1000Kgf)

Technical Specifications:

Standard Accessories (The Packing List):

Optional Accessories:

1,  micrometer ocular 10X

2,  micrometer ocular 15X

3,  Brinell hardness indentation measuring equipment:

Used to show indentation( Brinell / Micro hardness / Vickers) on the screen, Replace the eyepiece to determine the indentation border , and measure the hardness

4,  Brinell measurement software:

Show a clear indentation on the computer screen, and automatic or manual measurement

5,  Hardness tester table

6,  Hardness block, the third party identification, Metrology institute etc
