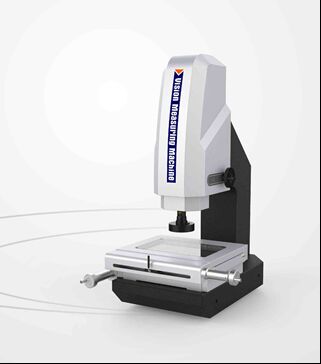

HVM5-2010 High Precision Manual Video Measuring Machine for 2D Inspection

HVM5-2010 High Precision Manual Video Measuring Machine for 2D Inspection

Applied-fields

It is mainly applied in 2D measurement field, such as: PCB mobile phone fittings ,linker ,machine fitting , cables, precision fixture ,and it can measure height in video solution too. It is a necessary instrument for 2D noon-contact measurement in college ,research institute and metrology department.

Technical Specifications

Characteristics

Product Characteristics

Adopt high-precision granite base and column to ensure the stability and precision of the machine;

Adopt high-precision toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within s25+L/200um; Adopt high- definition zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;

Using the program controlled surface 4-ring 8- area LED cold illumination and Contour LED Parallel illumination as well aa built in intelligent light adjustment module the area brightness of the machine can be freely controlled

iMeasuring Vision measurement software improves quality control to a new level;

Optional contact probe and three dimensional measurement software can be used to upgrade the machine to a contact three dimensional measuring machine. It can be upgraded to install an autofocus function module to achieve accurate semi-automatic measurement
