XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors
XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors

Large Image :  XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: TCN799 Radiation collimator
Document: TCN799 radiation collimator...or.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: in carton
Delivery Time: 3~5 days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 pcs per month
Contact Now

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors

Description
Product Name: Radiation Collimator Model: TCN799
Highlight:

Tungsten collimators for NDT

,

Gamma-ray projector collimators

,

XR accessories TCN799 collimators

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors


GAMMA RAY COLLIMATORS

Collimators contain and direct the beam of radiation during exposure. A wide range of collimators have been developed to meet the variety of applications and techniques used.

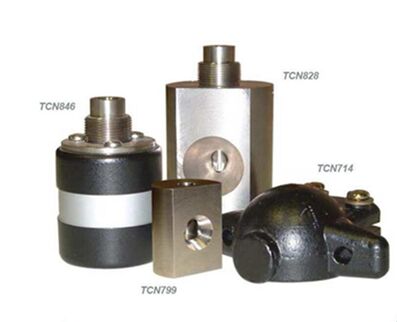

COLLIMATORS

DESCRIPTION

WEIGHT

BEAM SIZE

ATTENUATION

HALF VALUE

LAYERS

ITEM NO.

Tungsten

1.75Ib (0.79kg)

60°Conical,side throw

Ir-192:0.05

Co-60:0.46

Ir-192:4.30

Co-60:1.12

TCN799



4.3 Ib (1.95kg)

60°Conical,side throw

Ir-192:0.009

Co-60:0.26

Ir-192:6.80

Co-60:1.90

TCN827



9.5 Ib (4.32kg)

60°Conical,side throw

Ir-192:0.003

Co-60:0.17

Ir-192:8.30

Co-60:2.50

TCN828



4.3 Ib (1.95kg)

20°x360°panoramic

Ir-192:0.0045

Co-60:0.18

Ir-192:7.80

Co-60:2.40

TCN846

Lead

3 Ib (1.36kg)

60°Conical,side throw

Ir-192:0.014

Co-60:0.32

Ir-192:6.20

Co-60:1.70

TCN714

Large Lead Collimator

3 Ib (1.36kg)

60°Conical,side throw

Ir-192:0.014

Ir-192:6.20

TCN717

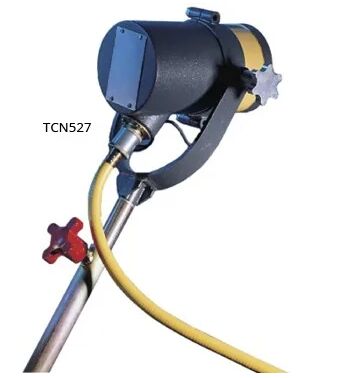

Lead Colliator with
Lab Stand & Inserts

32 Ib (14.5kg)

20°x360°panoramic

60°directional

Ir-192:0.001

Co-60:0.10

Ir-192:10.0

Co-60:3.30

TCN527

527 Collimor Only

32 Ib (14.5kg)

20°x360°panoramic

60°directional

Ir-192:0.001

Co-60:0.10

Ir-192:10.0

Co-60:3.30

52710

360° Panoramic Inseit



20°x360°panoramic





52704

60° Directional Insert



60°directional





52711

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors 0

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors 1

XR Accessories Tungsten Collimators TCN799 for NDT Gamma-Ray Projectors 2
