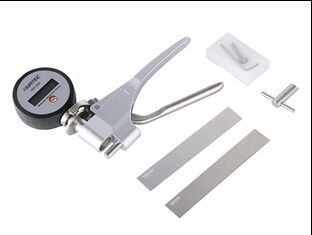

HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing

HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing
HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing

Large Image :  HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HW-D20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 1-3 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing

Description
Testing Range: 0~20HW Accuracy: 0.5HW
Operating Condition: Temperature: 0ºC~50ºC,Humidity:<80%RH
Highlight:

portable aluminum alloy hardness tester

,

Webster hardness tester for aluminum

,

non-destructive testing equipment with warranty

HW-D20 Webster Hardness Tester for Aluminum Alloy Portable Hardness Testing


Features

*Press needle: new material, new process manufacturing of press needle, high hardness, long life, good interchangeability

*Handle: forged material, surface anodized upper handle, beautiful, wear resistant, pollution resistant

*Hardness block: the standard hardness block is tested by the standard hardness machine

*High quality: fine parts processing, precision machine assembly, strict quality inspection

*Good stability: full degree point stability, correction point stability

Specifications

Testing range

0~20HW

Accuracy

0.5HW

Weight

625g

Dimension

220*160*30mm

Power supply

2x 1.5AAA battery

Operating condition

Temperature: 0ºC~50ºC,Humidity:<80%RH





Standard Accessories

Standard wechsler HW-D20

Spare presser

Special wrench

Anvil seat cover

Small screwdriver

Hardness block

Carrying Case

Operation Manual

Calibration Certificate

Optional Accessories

Spare presser

Standard Wechsler hardness block


Application

HW-D20 Webster hardness tester is an instrument that can quickly test the hardness of aluminum alloy in the field

Wechsler hardness tester is easy to use,one card can, hardness value directly read. Used for rapid detection hardness of aluminum alloy profiles,pipes, plates, aluminum workpieces and other soft metals.

It is especially suitable for fast and non-destructive testing of batch products at the production site, sales site or construction site item by item inspection
