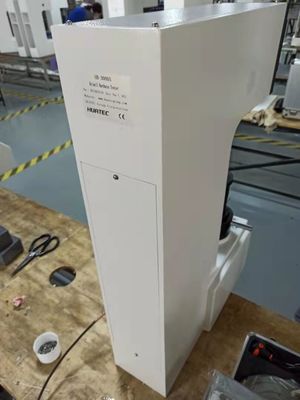

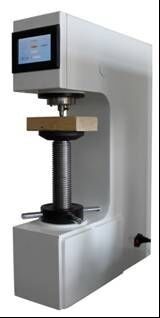

HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test

HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test
HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test

Large Image :  HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HHW-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 1-3 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test

Description
Maximum Load: 15,000N Load Accuracy: +/- 0.5%
Minimum Load: 1N, (Better Than Standard Level) Pressing Depth Accuracy: 1 Micron (Better Than Standard Level)
Power: AC220V / 100W
Highlight:

Automatic timber hardness meter

,

Wood hardness tester 15000N

,

Non-destructive wood testing equipment

HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test


Main advantages:

HHW-1500 wood timber hardness hardness measurement timber according to GBT 1941-2009 hardness testing standard methods. Dedicated to measuring the hardness of the wood.

The hardness of the maximum pressure of 15,000 cattle (1500 kg), measure all the wood, including the most hard wood hardness;

The hardness of high precision, simple operation, convenient and practical, high cost.

Technical parameters

Maximum load15,000N
Load accuracy+/- 0.5%
Minimum load

1N, (Better than standard level)

Pressing depth accuracy

1 micron (Better than standard level)

Dimensions&Weight550 * 210 * 750mm (mm),89kg
PowerAC220V / 100W

Main Function

l ● panel settings by penatration depth: 5.64 or 2.82 mm

 ● panel settings by loading speed: 3,4,5,6 mm / minl

 ● automatically display the hardness valuel

Application area: Widely used in the hardness testing of timber. If accompanied with a wide variety , it can be also for the mechanical properties of component test profiles.


Standard configuration

Item

Quantity

Item

Quantity

Host

1

An instrument case

1

Test anvil

1

Plastic dust cover 1

1

Indenter

1

Product Manual 1

1

Power line 1

1

Product certification 1

1



HHW-1500 Automatic Timber 15000N Wood Hardness Meter for All Kinds of Wood Hardness Test 0
