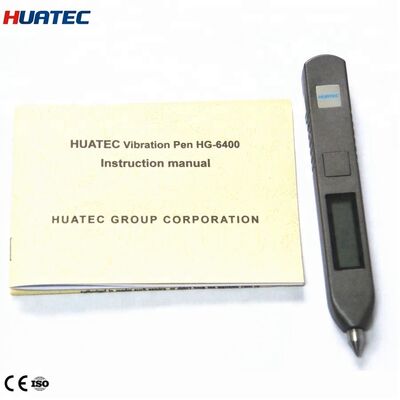

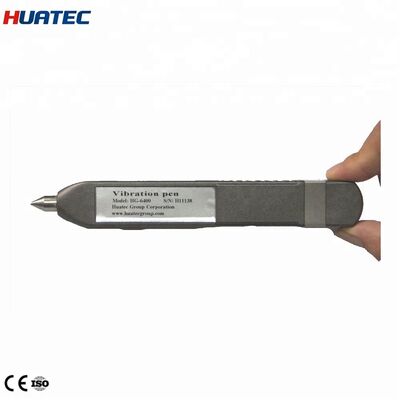

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration
Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration

Large Image :  Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HG-6400
Document: HG-6400.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 5~7 days after payment
Payment Terms: T/T,Paypal
Supply Ability: 100 pcs per month
Contact Now

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration

Description
Parameter: Velocity Accuracy: ±5%
Display: 3 1/2 Digits LCD Power Supply: Two Button Batteries(LR44 Or SR44)
Battery Capacity: Approx. 4.5 Hours Working Continuously Humidity: <85%
Highlight:

pen type vibration meter

,

motor failure detecting meter

,

velocity vibration testing equipment

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration


Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine
tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds


Technical Specifications:

Parameter Velocity


Testing range

Velocity: 0.1mm/s-199.9 mm/s(RMS)

Frequency range

Velocity: 10Hz ~ 1kHz
Accuracy ±5%
Display 3 1/2 digits LCD
Power supply two button batteries(LR44 or SR44)
Battery capacity Approx. 4.5 hours working continuously
Operating temperature 0℃ ~ 40℃
Humidity <85%
Dimension 150mm×22mm×15mm


Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration 0Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration 1Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration 2
