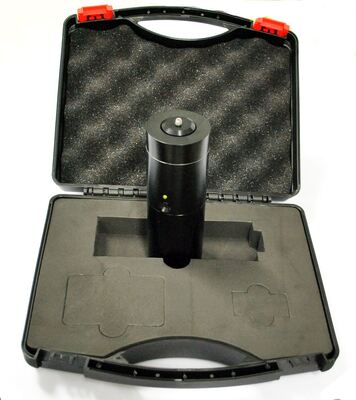

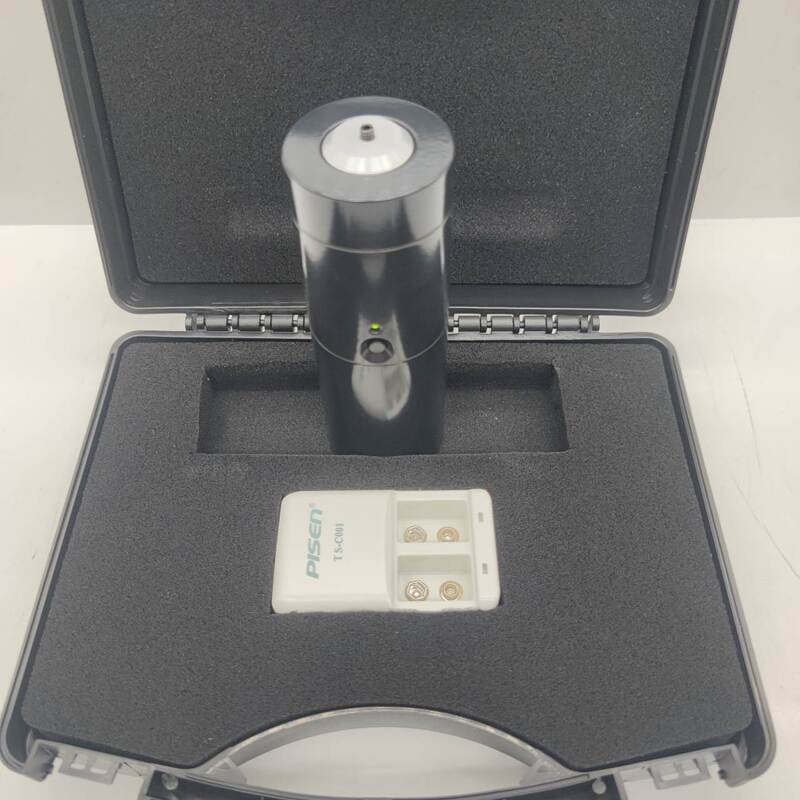

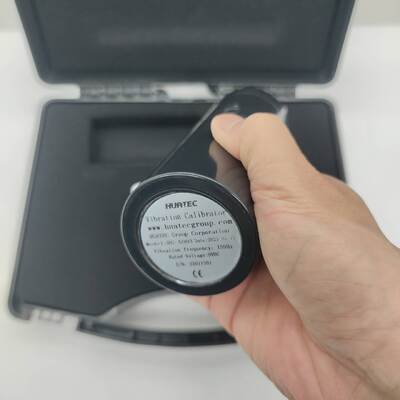

Vibration Calibrator Used to Calibrate Small Vibration Transducers

Vibration Calibrator Used to Calibrate Small Vibration Transducers
Vibration Calibrator Used to Calibrate Small Vibration Transducers Vibration Calibrator Used to Calibrate Small Vibration Transducers Vibration Calibrator Used to Calibrate Small Vibration Transducers Vibration Calibrator Used to Calibrate Small Vibration Transducers

Large Image :  Vibration Calibrator Used to Calibrate Small Vibration Transducers

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HG-5003
Document: HG-5003.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 5-7 days after payment
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 100 sets per month
Contact Now

Vibration Calibrator Used to Calibrate Small Vibration Transducers

Description
Product Name: Vibration Calibrator Model: HG-5003
Accuracy: 5% Maximum Load: 120Gram
Highlight:

vibration calibrator for transducers

,

small vibration transducer calibrator

,

non-destructive testing vibration calibrator

Vibration Calibrator Used to Calibrate Small Vibration Transducers


General Description
HG5003 Vibration Calibrator can be used to calibrate small vibration transducers and also vibration measuring instruments and vibration monitoring systems quickly. Standard sine signals with fixed frequency 159.2Hz and fixed amplitude is generated from the calibrator.
HG5003 Vibration Calibrator combines sine signal generator, power amplifier, standard transducer and shaker in one and features a smaller volume, high accuracy and easy operation. It can be used either in laboratory or on site.


Specifications
1. Accuracy: 5%
2. Acceleration Amplitude(RMS):9.81m/s2(1g)±3%
3. Velocity Amplitude (RMS):9.81mm/s±3%
4. Displacement Amplitude (RMS):9.81μm±3%
5. Vibration Frequency:159.2Hz±0.5%
6. Output waveform: Sine waveform
7. Waveform distortion:5%
8. Maximum Load: 120Gram
9. Battery: 9V rechargeable, Need 15 hours for fully charge
10. Can make the device work for 1.5 hours
11. Automatic power off time: 50seconds.
12. Working temperature: 0-55 oC
13. Size:Φ52×160mm
14. Weight: 600 gram (with batteries)
15. Tapped hole for sensor installation: M5 x 30mm

Vibration Calibrator Used to Calibrate Small Vibration Transducers 0
