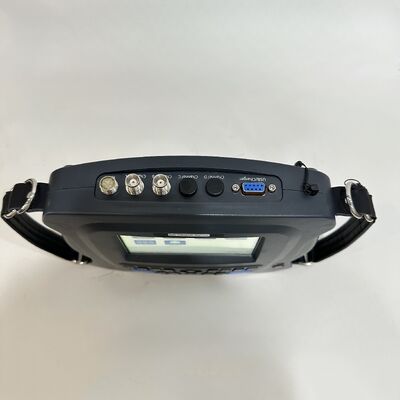

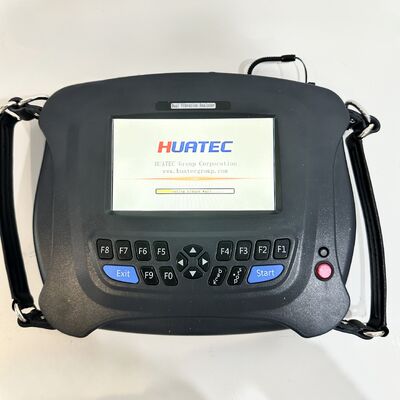

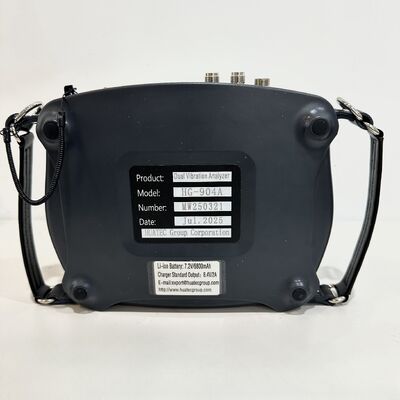

Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument

Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument
Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument

Large Image :  Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HG-904A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton packing box
Delivery Time: 7~10 days after payment
Payment Terms: T/T,Paypal
Supply Ability: 100 sets per month
Contact Now

Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument

Description
AD: 16 Bit Measuring Accuracy Of Vibration: 5 %
Data Storage: 8G Input Signal: Accelerometer, ICP And Voltage
Highlight:

Portable vibration analyzer data collector

,

Four channel vibration testing instrument

,

Multi-functional non-destructive testing equipment

Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument
Product Overview

The HG-904A Dual Channel Machinery Frequency Spectrum Analyzer is designed for dynamic balancing and vibration detection. Imbalance is one of the main causes of machine vibration, accounting for approximately 50% of all faults. This analyzer provides on-site balancing capabilities by measuring vibration intensity, diagnosing causes through frequency spectrum analysis, and calculating imbalance weight and location.

Key Specifications
Attribute Value
AD 16 bit
Rotation speed range for dynamic balancing 70-13,000 r/min
Measuring accuracy of vibration 5%
Data storage 8G
Input signal Accelerometer, ICP and voltage

 Measurement Capabilities

Amplitude ranges Frequency Response
Displacement: 0.003 - 5 mm peak-peak 10 - 500 Hz
Velocity: 0.2 - 200mm/s true RMS 10 - 1000 Hz
Acceleration: 0.5 - 250m/s² peak 20 - 5000 Hz
Envelope: 0.1 - 20unit true RMS 5-1000Hz from 15-40 KHz
Voltage: 0.1 - 10V peak-peak 10 - 10000 Hz
Key Features
  • Easy to use with vector illustration for clear balancing process visualization
  • Storage for 10 rotors balancing data
  • Selectable trial mass remove or remain option
  • Automatic trial weight range calculation based on rotor weight, speed, radius, and required balance grade
  • Automatic trial mass validity judgment
  • Dual-channel simultaneous data collection
  • Hardware envelop demodulation for bearing and gear diagnosis
  • Large LCD display for waveform and spectrum visualization
  • 16-bit AD conversion
  • On-site FFT spectrum analysis (400-12800 lines)
  • Transfer function for measuring natural frequency
Technical Specifications
Rotation speed range for dynamic balancing: 70-13,000 r/min
Auto-range and manual-range: Selectable
Measuring accuracy of vibration: 5%
Sensors: Piezoelectric accelerometer, Magnetoelectricity velocity, Eddy displacement
Filter: 8th-order ellipse anti-aliasing filter, RPM band-pass filter
Frequency span of spectrum analysis: 100Hz to 35KHz
Dynamic Range: 60dB with 48dB adjustable gain range
Dimensions: 21×13×4 cm
Weight: 1.2 kg (including batteries)
Operating Conditions
Temperature range: 5°C to 50°C
Relative humidity: <85%, unsaturated
Not for use in caustic gas environments
Avoid strong electromagnetic fields and strong impacts
Safety Note: Do not contact with running machine parts
Power & Connectivity
Battery: Ni-MH rechargeable battery for 8 hours continuous operation
Low battery warning system
Connectivity: USB output for PC communication
Package Contents
  • New HG904A Vibration Data Collector (1)
  • Accelerometer (2)
  • Magnetic Mount (2)
  • Steel Extension Probe (1)
  • Battery Charger (1)
  • Accelerometer Cable (3)
  • USB Communication Cable (1)
  • Balancing Module (1)
  • Tacho/Trigger Sensor and cable (1)
  • Reflector Paper set (1)
  • Quick Start Guide (1)
  • Software CD (1)
  • Certificates of HG904A and sensors (3)
  • Carrying Case (1)
Product Images
Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument 0
Portable Four or Two Channels Vibration Analyzer Data Collector Multi-Functional Instrument 1
