Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light

Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light
Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light

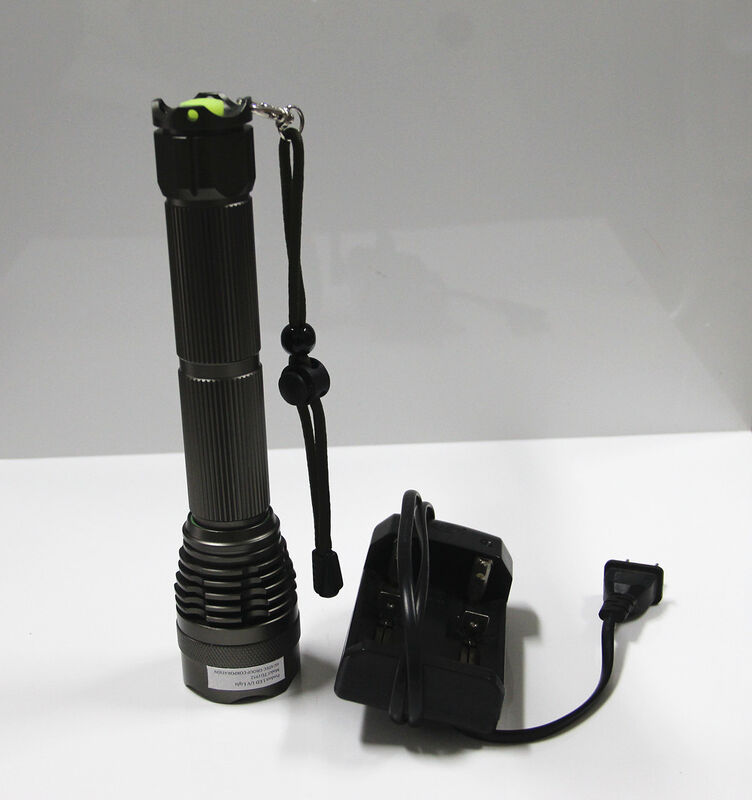

Large Image :  Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: DG-3W
Document: DG-3W.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: in carton box
Delivery Time: 5-7 days after payment
Payment Terms: T/T,Paypal
Supply Ability: 100 sets per month
Contact Now

Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light

Description
Style: Torch Style UV(Light)-FLUX Indoor Temperature 25℃: Spotlight Type>10000uw/cm2 Astigmic Type>2500uw/cm2
FLUX Error: 0-40℃ ±10% Power Supply: AC100-240V 50/60Hz
Power: UV LED-3VA Wave Length: Indoor Temperature 25℃ 365nm±3nm(UVA)
Charging Time: 2-3H Battery Cumulative Time: UV LED About 8H
Highlight:

Handheld UV light 365nm

,

LED-UV torch high intensity

,

Non-destructive testing UV light

Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light


Characteristic
Irradiance Spotlight type>10000uw/cm2
Astigmic type>2500uw/cm2
Light source life 30000H


Parameters

Item parameter
Style torch style
UV(Light)-FLUX
Indoor temperature 25℃		 Spotlight type>10000uw/cm2
Astigmic type>2500uw/cm2
FLUX error 0-40℃ ±10%
Grading feature Centre grading
Power supply AC100-240V 50/60Hz
power UV LED-3VA
wave length Indoor temperature 25℃
365nm±3nm(UVA)
Outline dimension 47mm*225mm
battery voltage 3.7V*2
Charging time 2-3H
Battery cumulative time UV LED about 8H


Feature:
3AV power saving of power consumption
30000H life expectancy of light source
Imported light source UVLED
0 UV-B contained
Battery endurance 8hrs
Pre-alert and protection of low power
Weight 360g only including batteries
Build in battery,no wiring outside
three minute delay(power saving)//constand lighting,mode can be switched
continuous operation and external surface temperature rises less than 5 celsius
No need to preheat,instant to reach 100% power

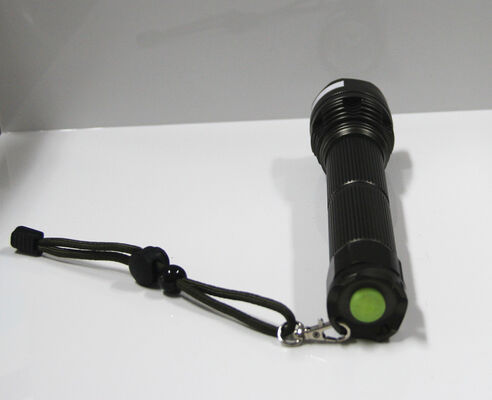

Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light 0

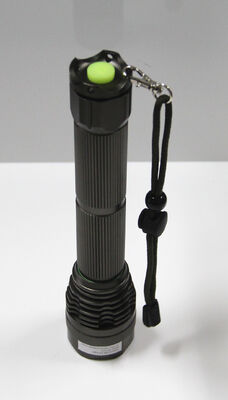

Handheld Torch Style LED-UV lighHigh Intensity 365nm UV Light 1
