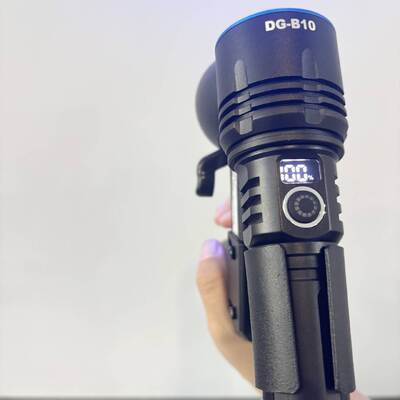

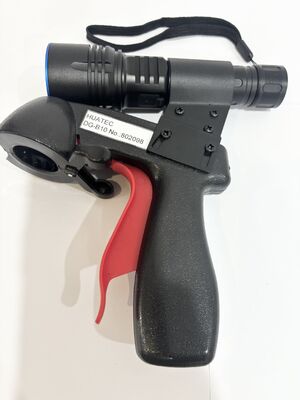

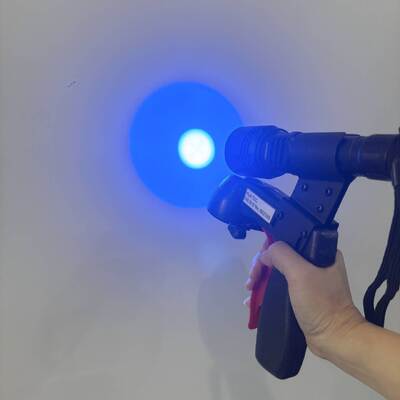

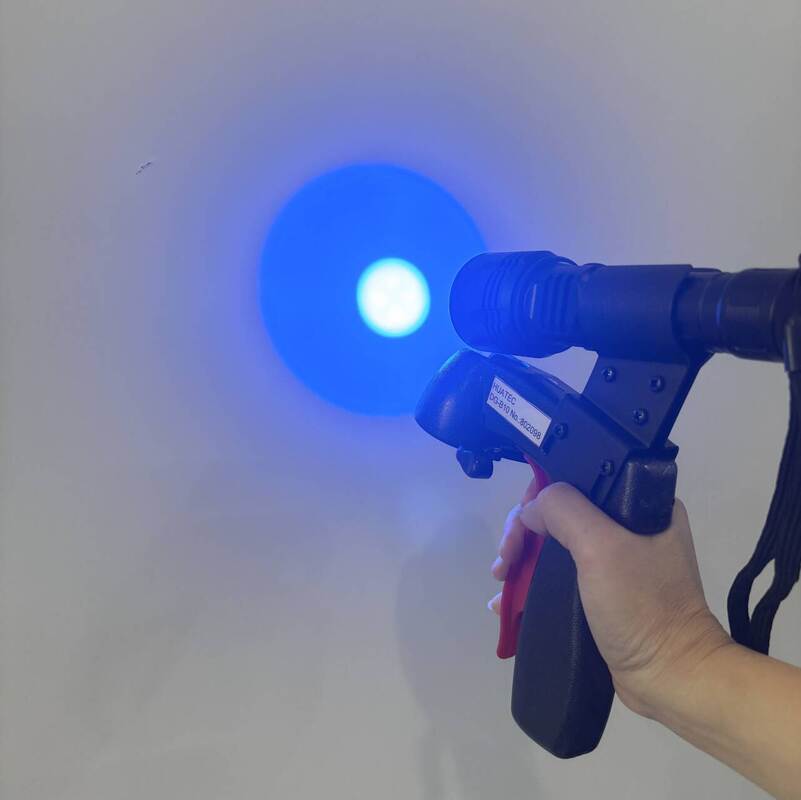

Handheld UV Lamp Effective Illumination Spot Diameter 15cm

Handheld UV Lamp Effective Illumination Spot Diameter 15cm
Handheld UV Lamp Effective Illumination Spot Diameter 15cm Handheld UV Lamp Effective Illumination Spot Diameter 15cm Handheld UV Lamp Effective Illumination Spot Diameter 15cm

Large Image :  Handheld UV Lamp Effective Illumination Spot Diameter 15cm

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: DG-B10
Document: DG-B10 360USD.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: in Carton box
Delivery Time: 5~7 days after payment
Payment Terms: T/T,Paypal,Western Union,L/C
Supply Ability: 100 sets per month
Contact Now

Handheld UV Lamp Effective Illumination Spot Diameter 15cm

Description
Lifespan: 10000H UV Central Irradiance: 57.4mW/cm ² (at A Distance Of 20cm)
Wavelength: 365nm Effective Illumination Spot Diameter: 15cm (at A Distance Of 20cm)
Highlight:

Handheld UV lamp for non-destructive testing

,

UV lamp with 15cm spot diameter

,

Portable UV illumination testing equipment

Handheld UV Lamp Effective Illumination Spot Diameter 15cm


Parameter

Type LED12 core
Lifespan

10000H
Material Aviation grade reinforced aluminum
Surface treatment anodized black
UV central irradiance

 57.4mW/cm ² (at a distance of 20cm)
Wavelength 365nm
Effective illumination spot diameter

15cm (at a distance of 20cm)
Battery 4 * 18650 battery
Voltage  3.7V
Charging time

3-4 hours
Product specifications

Length 140 * Diameter φ 58mm
Switch mode

Side button switch



Standard configuration:

Handheld UV Lamp 1

Battery 4

Charging cable 1

Plastic box 1

Handheld UV Lamp Effective Illumination Spot Diameter 15cm 0

Handheld UV Lamp Effective Illumination Spot Diameter 15cm 1
