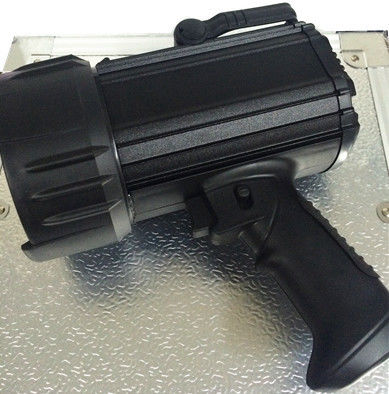

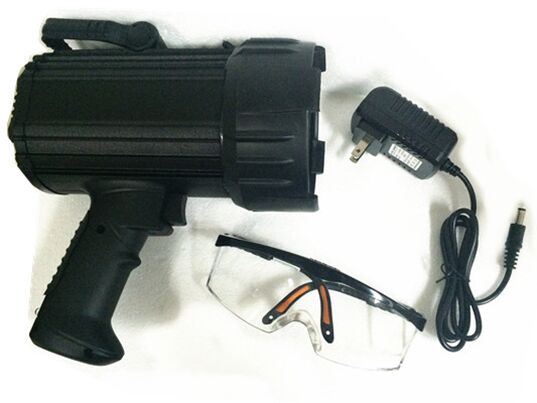

DG-8W LED UV Black Light Lamp for NDT Magnetic Particle Testing

Large Image : DG-8W LED UV Black Light Lamp for NDT Magnetic Particle Testing

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-8W

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-8W LED UV Black Light Lamp for NDT Magnetic Particle Testing

Description

Intensity:	≥8000uW/cm²	White Light:	≥1200LUX
White Levels:	≤20LUX	Area Covered:	220mm
Power:	UV LED-9VA,LED Light-3VA	Battery Cumulative Time:	UV LED 4-5H Or Light 16H
Battery Capacity:	5800mA/H 12.6V
Highlight:	LED UV black light lamp , NDT magnetic particle testing lamp , UV lamp for non-destructive testing

DG-8W LED UV Black Light Lamp for NDT Magnetic Particle Testing

Characteristic:

Internal batteries

Pre-alert and protection of low power

Light source life 30000H

Meet standard:ASTM E3022-2015 or JB/T 8290-2011

Technical specifications

Item	DG-8W
Standard	JB/T 8290-2011
Intensity≥	8000uW/cm²
White light≥	1200LUX
White levels≤	20LUX
Area covered	220mm
Power supply	AC100-240V 50/60Hz
Power	UV LED-9VA,LED Light-3VA
Wave length	Indoor temperature 25℃ 365nm±3nm(UVA)
Outline dimension	203mm(W)110MM(D)220mm(H)
Weight	1kgs
Battery capacity	5800mA/H 12.6V
Battery cumulative time	UV LED 4-5H or Light 16H

Feature:

9av power saving of power consumption

30000H life expectancy of light source

0 UV-B contained

Battery endurance 5-6hrs

Pre-alert and protection of low power

Weight 1kg only including batteries

Build in battery, no wiring outside, can change battery easily

Three minute delay(power saving)//constand lighting,mode can be switched

Quartz and optical glass module, not PMMA material, excellent weather resistance

Continuous operation and external surface temperature rises less than 5 Celsius

No need to preheat, instant to reach 100% power

With UV and white light dual function, one hand switch.

White light less than 20LUX
