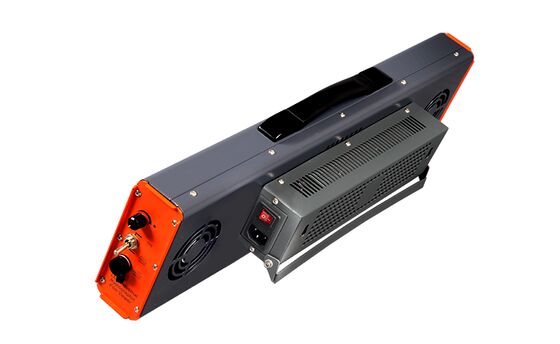

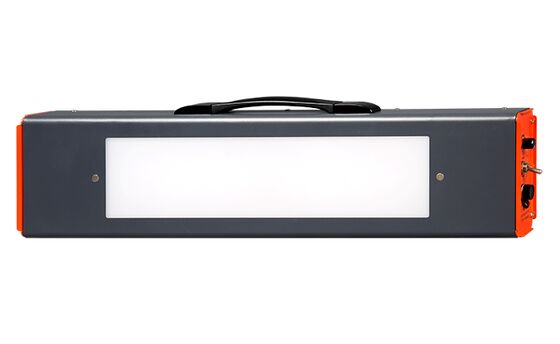

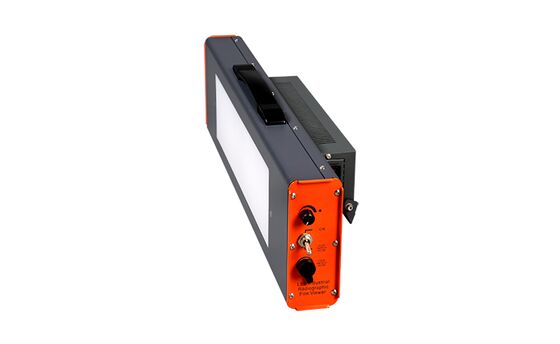

NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage

NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage
NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage

Large Image :  NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HFV-4010P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton box
Delivery Time: 5~8 days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 pcs per month
Contact Now

NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage

Description
Product Name: Film Viewer Viewing Area: 400x100mm
Easily View: ＞4. 0 Density Control Mode: Manual+Foot-switch
Highlight:

LED film viewer NDT equipment

,

400x100mm viewing area film viewer

,

Non-destructive testing LED viewer

NDT Equipment Featuring Innovative LED Film Viewer Technology with 400x100mm Viewing Area and Usage


Features:

New design: Highly reliable and innovative, optimized right-side Panel control

Viewing area: 400x100mm

Easily View＞4. 0 Density

Pure White LED Light

50,000 Hour Lamp Life

Low Power Consumption

Fan cooling

Control mode: Manual+Foot-switch

Design: Modern, Stylish and Simple

Mask size: 24x10cm, 24x6cm, 40x6cm optional



Specifications:

Adapter Input voltage

85-264VAC/47-60Hz Power: 200W

Maximum Light Intensity

>100,000 Cd/㎡

Film density

>4.0D According to the inspection report

Surface temperature

<18°Celsius Continuous operation for 24 hours)

Uniform Viewing Area

95% Full Screen

Dimmer Control

0% to 100% continuous

Control mode

Manual + Foot-switch

Cooling Method

Forced air cooling

Dimensions

610x155x60+50mm (L*W*H)

Viewer window

400mm*10mm (L*W)

Viewing-mask window

24x10cm, 24x6cm, 40x6cm  (L*W) optional

Power

200W

Weight

5.8 KG



Package Contents:

LED viewer with densitometer HFV-4010P 1pc

Foot switch 1pc

AC power cord 1pc

Viewing mask 1pc

Magnetic film holder 2pcs

Magnetic ruler 1pc

User's manual 1pc

Calibration certificate 1pc



Trouble Cause of the fault:

The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
