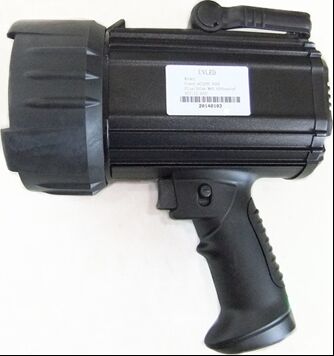

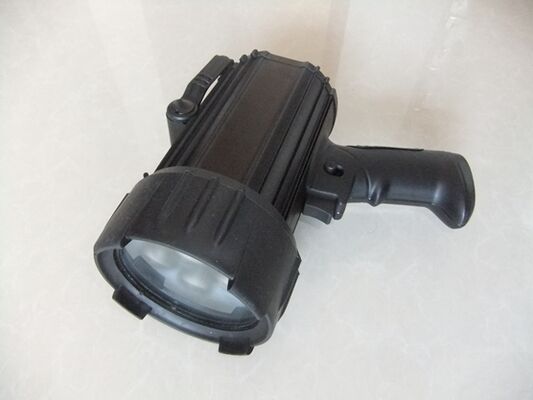

DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing

DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing
DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing

Large Image :  DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: DG-10K
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing

Description
UV(Light)-FLUX Room Temperature 25℃ Mark At 380mm: UV Light 10000uW/cm² / Light 1500lux FLUX Error: 0-40℃ ±10％
Light Distribution Characteristics: Central Light Distribution Power Supply: AC100-240V 50/60Hz
Power: UV LED-9VA LED-3VA Wavelength: Room Temperature25℃ 365nm±3nm（UVA）
Highlight:

handheld UV black light flashlight

,

LED UV light for magnetic testing

,

built-in battery UV inspection flashlight

DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing


Characteristic

l  Energy saving: only 12va power consumption.

l  Average life of light source of 30000h.

l  Original imported light source UVLED.

l  UV-B content is 0.

l  5-6 hours battery life.

l  Only 1kg weight including battery.

l  Built in battery, no external wiring

l  Quartz and optical glass module, non PMMA material, excellent weather resistance.

l  The temperature rise of continuous working outer surface is less than 5K (5 ℃).

l  Without preheating, it can reach 100% power instantly.

l  UV and white light switching function.

project

Parameter/Mode

Type

handheld

UV(Light)-FLUX

　

room temperature 25℃
Mark at 380mm

UV Light   10000uW/cm² /  Light 1500lux

FLUX error

0-40℃  ±10％

Area at 380mm
(≥1000uw/cm²)

DG-10K     aboutΦ200mm

Light distribution characteristics

Central light distribution

Power Supply

AC100-240V   50/60Hz

Power

UV LED-9VA  LED-3VA

wavelength

room temperature25℃    365nm±3nm(UVA)

Dimension

203mm(W)*110mm(D)*220mm(H)

Weight

1Kg

Battery capacity

5800mA/H 12.6V

Charging time

5-6H

Battery life
(cumulative time)

UV LED  4-5H or Light  16H


















DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing 0

DG-10K Handheld LED UV Black Light Flashlight with Built-in Battery for Magnetic Particle Testing 1
