YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block

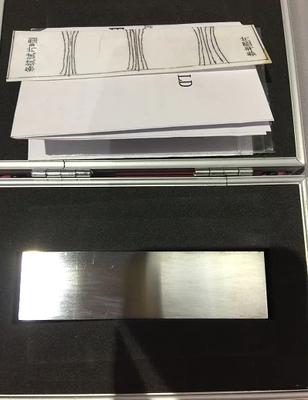

Large Image : YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	YM-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block

Description

Material Standard:

ISO 10474-3.1.B,JIS G 0415-3.1.B

Depth:

150µm

Width Target Value:

0.5µm,1.0μ And 1.5μ

Test Standard:

ISO 3452-3:1998(E),JB/T6064

Highlight:

Multi-width penetrant testing specimen

DPI NDT inspection reference block

Non-destructive testing equipment with warranty

YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block

All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled

Material standard	according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Width target value	0.5µm,1.0μ and 1.5μ
Depth	150µm
Test standard	ISO 3452-3:1998(E),JB/T6064

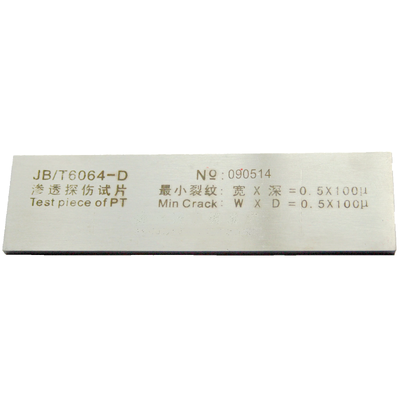

YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block 0
