DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector

Large Image : DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DC

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector

Description

Material:

Carbon Steel

Dimensions:

2.0”radius Section Is. 5” Thick, 1.0” Radius Section Is 1.0”thick

Standard:

ASTM E164 And BRR/AWS X-1

Highlight:

DC type UT calibration block

Shear wave distance calibration block

Ultrasonic flaw detector reference block

DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector

Standard: ASTM E 164-2013

Application:

Distance Calibration for shear wave transducers.

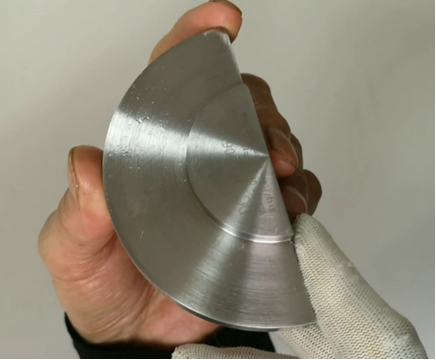

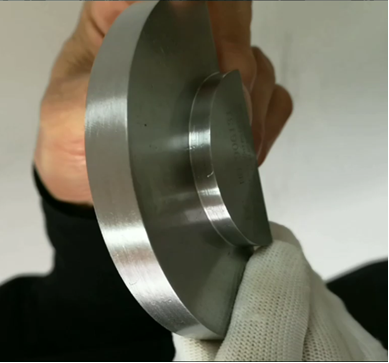

AWS-type block used for shear wave distance calibration. Containsa 1.0” radius overlaying a 2.0" radius on a 1800 segment.

Standard	ASTM E164 and BRR/AWS X-1
Dimensions	2.0”radius section is. 5” thick, 1.0” radius section is 1.0”thick. Metric version available

DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector 0

DC Type UT Calibration Block 1.0" & 2.0" Radius Shear Wave Distance Calibration Reference Block For Ultrasonic Flaw Detector 1
