IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen

Large Image : IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	IOW

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen

Description

Material:

Carbon Steel

Standard:

API RP 2X-2004

Highlight:

Industrial beam profile calibration block

Ultrasonic inspection angle probe

NDT calibration test specimen

IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen

Standard: API RP 2X-2004

Application:

Beam profile measurement of angle beam transducers.

Geometry:

Material

Carbon steel

Specification

2" x 3" x 12"

Contains two 1/16" diameter x 7/8" deep calibration holes on the near side and two 1/16" diameter x 7/8" deep calibration holes on the far side.

Also contains five 1/16" diameter resolution holes drilled on 10º slope; far side only.

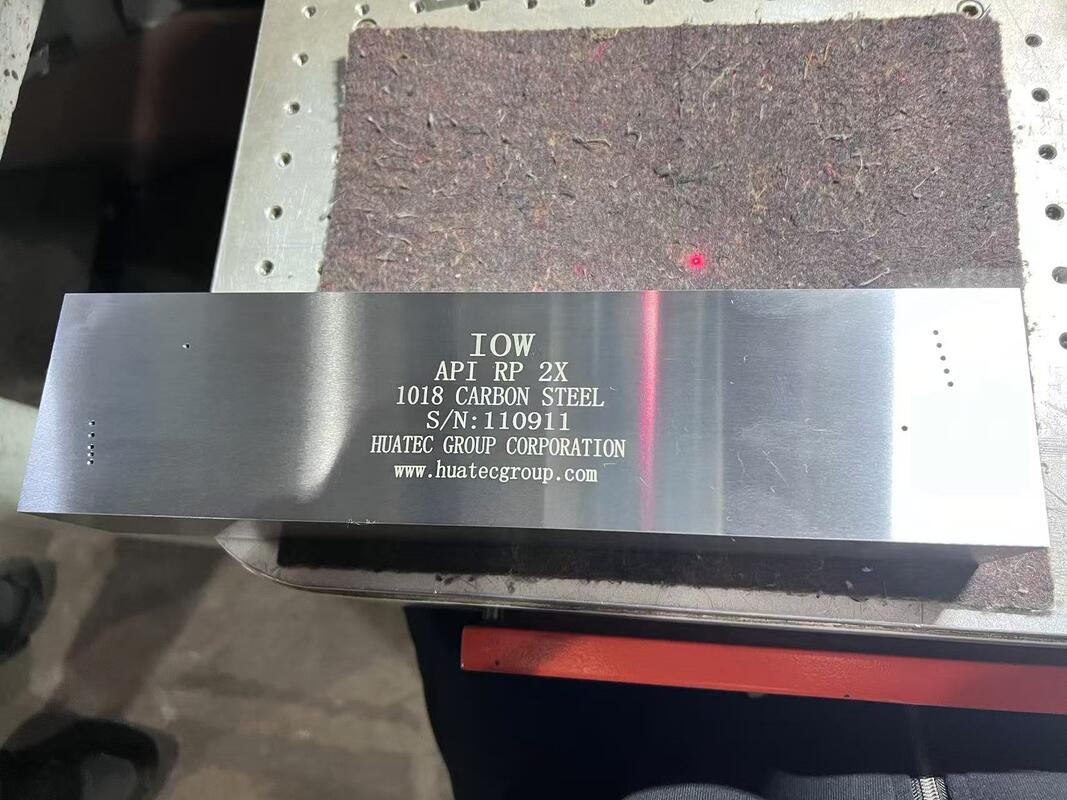

IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen 0

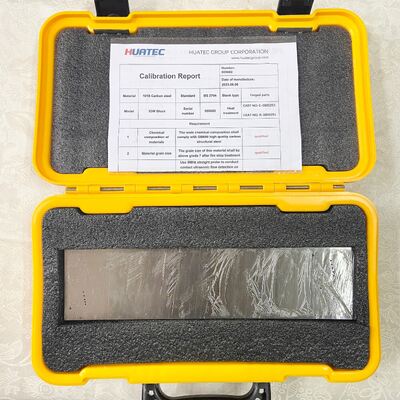

IOW Industrial Beam Profile Calibration Block Ultrasonic Inspection Angle Probe Calibration Test Specimen 1
