IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block

Large Image : IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	IOW

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block

Description

Material:

Carbon Steel

Standard:

API RP 2X-2004

Highlight:

UT calibration block 1/16 diameter holes

NDT ultrasonic testing reference block

API RP 2X calibration block 10° slope

IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block

Standard: API RP 2X-2004

Application:

Beam profile measurement of angle beam transducers.

Geometry:

Material

Carbon steel

Specification

2" x 3" x 12"

Contains two 1/16" diameter x 7/8" deep calibration holes on the near side and two 1/16" diameter x 7/8" deep calibration holes on the far side.

Also contains five 1/16" diameter resolution holes drilled on 10º slope; far side only.

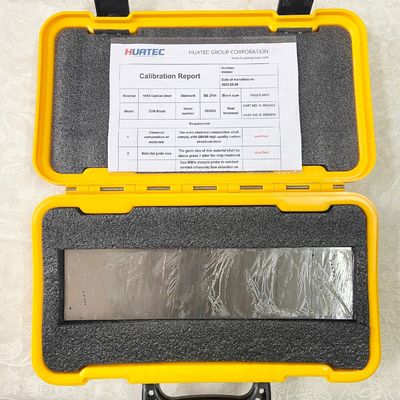

IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block 0

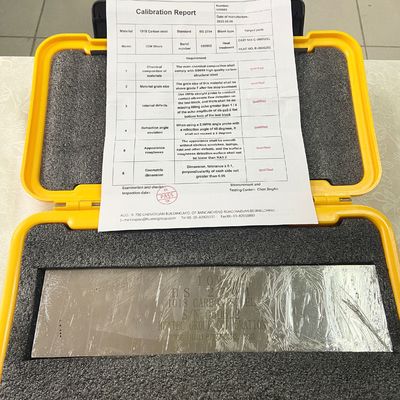

IOW API RP 2X UT Calibration Block 1/16" Diameter Holes 10° Slope Resolution Hole NDT Ultrasonic Testing Reference Block 1
