SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes

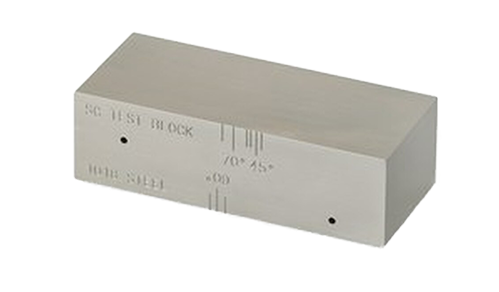

Large Image : SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SC

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes

Description

Material:

Carbon Steel

Dimensions:

0.905" X 1.25" X 3" With Two 0.062" Diameter Side Drilled Holes.

Standard:

ASTM E 164-2013

Highlight:

SC ASTM E164 ultrasonic calibration block

shear wave probe test block

side drilled holes calibration block

SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes

1. Executive Standard

Comply with ASTM E 164-2013 Standard Practice for Ultrasonic Testing of Metals, fully meet the shear wave sensitivity calibration requirements for industrial ultrasonic flaw detection.

2.Physical Geometry Parameters

Overall dimension	0.905 inch × 1.25 inch × 3 inch
Built-in calibration feature	2 pieces side drilled holes
Hole diameter	0.062 inch
Hole depth	Through the block for stable echo signal output
Surface finish	Precision grinding, flatness tolerance ≤0.0005 inch, no burr or scratch to avoid signal interference
Optional versions	Imperial inch standard block; Metric millimeter customized block available on request

3. Core Function & Application

*Mainly used for shear wave (transverse wave) sensitivity calibration of angle beam ultrasonic transducers.

*Calibrate detection sensitivity, verify system signal amplitude, check gain linearity of ultrasonic flaw detector.

*Applicable for pipeline weld inspection, pressure vessel NDT, structural steel ultrasonic testing, machinery component flaw detection.

*Suitable for daily instrument performance verification before shift, periodic equipment calibration, and laboratory performance testing.

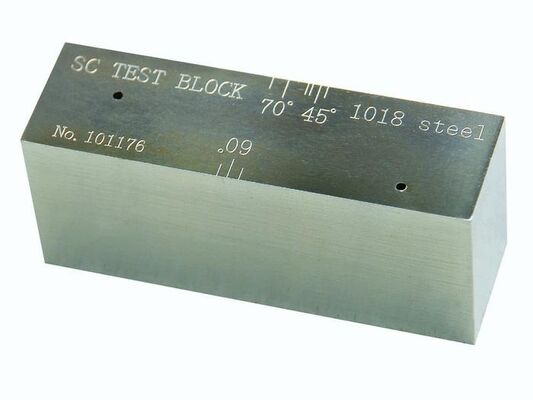

SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes 0
