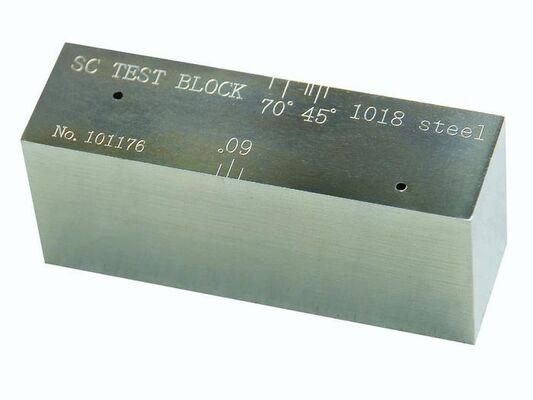

SC UT Sensitivity Reference Block 0.905"×1.25"×3" NDT Shear Wave Sensitivity Calibration Specimen

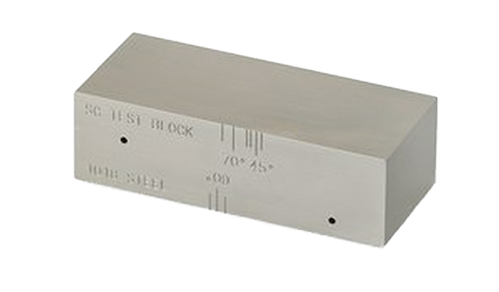

Large Image : SC UT Sensitivity Reference Block 0.905"×1.25"×3" NDT Shear Wave Sensitivity Calibration Specimen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SC

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

SC UT Sensitivity Reference Block 0.905"×1.25"×3" NDT Shear Wave Sensitivity Calibration Specimen

Description

Material:

Carbon Steel

Dimensions:

0.905" X 1.25" X 3" With Two 0.062" Diameter Side Drilled Holes.

Standard:

ASTM E 164-2013

Highlight:

SC UT sensitivity reference block

NDT shear wave calibration specimen

0.905x1.25x3 calibration block

SC UT Sensitivity Reference Block 0.905"×1.25"×3" NDT Shear Wave Sensitivity Calibration Specimen

1. Executive Standard

Comply with ASTM E 164-2013 Standard Practice for Ultrasonic Testing of Metals, fully meet the shear wave sensitivity calibration requirements for industrial ultrasonic flaw detection.

2.Physical Geometry Parameters

Overall dimension	0.905 inch × 1.25 inch × 3 inch
Built-in calibration feature	2 pieces side drilled holes
Hole diameter	0.062 inch
Hole depth	Through the block for stable echo signal output
Surface finish	Precision grinding, flatness tolerance ≤0.0005 inch, no burr or scratch to avoid signal interference
Optional versions	Imperial inch standard block; Metric millimeter customized block available on request

3. Core Function & Application

*Mainly used for shear wave (transverse wave) sensitivity calibration of angle beam ultrasonic transducers.

*Calibrate detection sensitivity, verify system signal amplitude, check gain linearity of ultrasonic flaw detector.

*Applicable for pipeline weld inspection, pressure vessel NDT, structural steel ultrasonic testing, machinery component flaw detection.

*Suitable for daily instrument performance verification before shift, periodic equipment calibration, and laboratory performance testing.

SC UT Sensitivity Reference Block 0.905"×1.25"×3" NDT Shear Wave Sensitivity Calibration Specimen 0
