Product Details:
|
| Display Resolution: | 0.1mm/0.01mm/0.001mm | Sound Velocity Range: | 1000 To 9999 M/sec |
|---|---|---|---|
| Measuring Refresh Frequency: | 4Hz - 25Hz | Memory Capacity: | 500 Test Values |
| Multiple Calibrations: | One Point Or Two Point | Power Source: | 2 Pcs. 1.5v AA Size Batteries |
| High Light: | ndt testing equipment,ndt inspection tools |
||

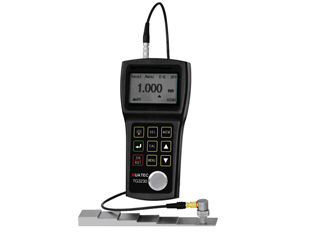

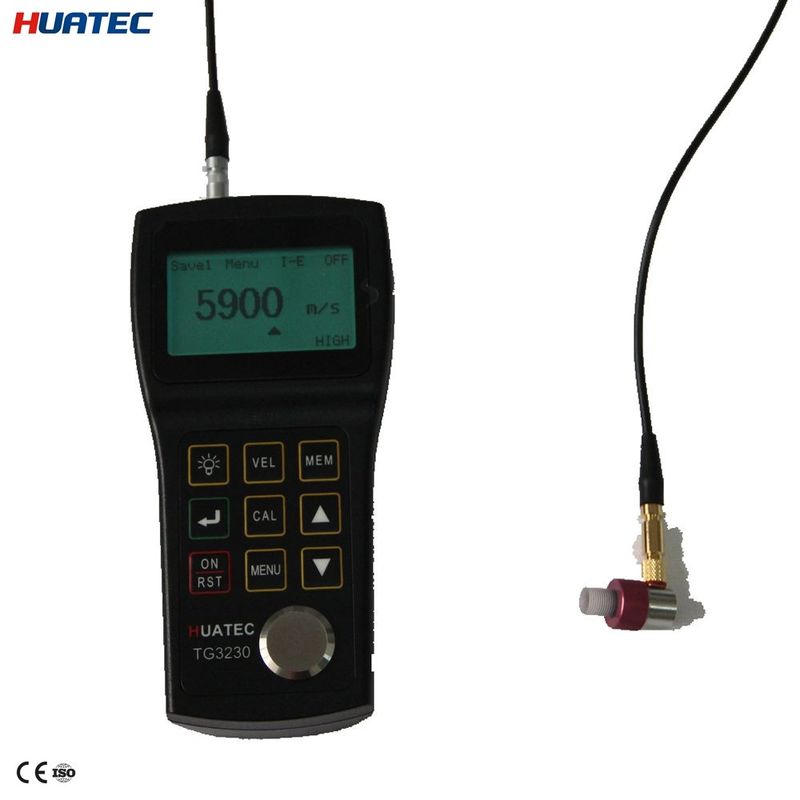

Non Destructive Testing Equipment HIGH PRECISION ULTRASONIC THICKNESS GAUGE TG-3230 in Imperlal And Metric
FEATURES
* High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
* Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
* Display Units:Imperlal And Metric
* Automatic Self Calibration
* Couplant Indicator
* Automatic Power Off Device
* High-Low Limit Alarm
* Lcd Brightness Adjust
* Low Battery Indictor
TECHNICAL SPECIFICATIONS
|
Measuring Range (for steel) |
Interface-Echo Mode: (I-E or Standard Mode) |
1.50mm– 20.0mm (0.059in – 0.787 in) |
|
Echo-Echo Mode: (E-E or High Precision Mode) |
0.15mm– 10.0mm (0.006in – 0.394in) |
|
|
Measuring Accuracy |
±0.005mm or 0.0002 inch (if thickness < 3mm) |
|
|
±0.05mm or 0.002 inch (if thickness < 20mm) |
||
|
Display Resolution |
mm : 0.1 / 0.01 / 0.001 |
|
|
inch : 0.01 / 0.001 / 0.0001 |
||
|
Sound Velocity Range |
1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms) |
|
|
Measuring Refresh Frequency |
4Hz in normal mode, up to 25Hz |
|
|
Memory Capacity |
500 test values |
|
|
Multiple Calibrations |
One point or Two Point |
|
|
Display LCD |
42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch) |
|
|
Power Source |
2 pcs. 1.5v AA size batteries |
|
|
Continuous working period |
About 200 hours (with backlight off) |
|
|
Power off |
Auto power off if idle for 4 minutes |
|
|
Operating Temperature |
-10 °Cto +50 °C |
|
|
Unit Size |
2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm). |
|
|
Weight |
200g |
|
STANDARD DELIVERY
Ultrasonic Thickness Gauge TG-3230 Main unit with Calibration block (4.00 mm)
Precision Probe (D11R) with Replaceable Delay Tip
Coupling Paste
Operation Manual
Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
Carrying Case
