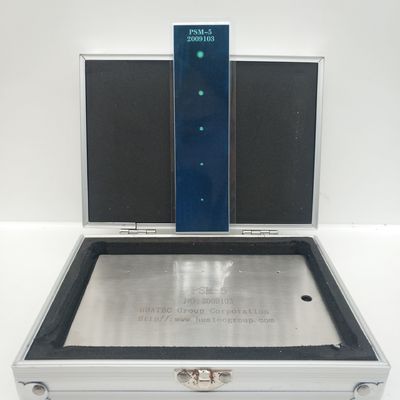

PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing

PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing
PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing

Large Image :  PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: PSM-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD322-USD364/SET
Packaging Details: aluminum alloy box+Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing

Description
Test Standard: MIL-STD-6866、ASME E1417P & WA TAM146040 Depth: 106µm
Width: 0.2~0.5µm Practicable Tolerance: +/-0.1mm
Material: Stainless Steel
Highlight:

PSM-5 stainless steel TAM test panel

,

PT reference specimen penetrant inspection

,

NDT LPI testing calibration block

PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing


The five point test piece is used to verify the sensitivity of the penetrant and the accuracy of the operating process. At the same time, the test block has a rough surface in the sandblasting area, which is used to verify the cleaning performance of the penetrant and the accuracy of the cleaning method. Its sensitivity is determined by the number of defects displayed and the diameter of each point and its radial domain.



Specification

 All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material: Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth 106µm
Width 0.2~0.5µm
Oxidizing property In -55℃ ~ 200℃ - store between three years not metamorphism,no oxidation,colour and lustre is silver
TRACEABLITY Calibration standards used are traceable to international standards





PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing 0PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing 1PSM-5 Stainless Steel TAM Test Panel Five Crack PT Reference Specimen Penetrant Inspection Calibration Block for NDT LPI Testing 2
