AWS-DSC UT Calibration Block Shear Wave Distance Sensitivity Refracted Angle Beam Index Calibration Ultrasonic Testing Reference Block

AWS-DSC UT Calibration Block Shear Wave Distance Sensitivity Refracted Angle Beam Index Calibration Ultrasonic Testing Reference Block

Standard: ASTM E 164-2013

The AWS-DSC Block measures distance, sensitivity, refracted angle and beam index calibration for angle beam transducers, per AWS and ASHTO requirements.

Applications:

Calibration of transverse and longitudinal wave distance, setting determination of the sound beam point of incidence, angle of propagation and sensitivity.

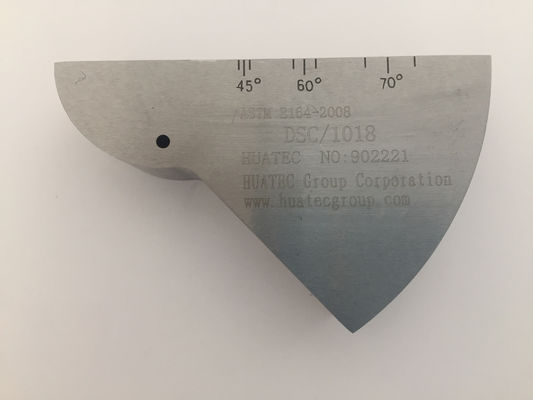

*AWS-type block used for shear wave distance and sensitivity calibration.Contains a 1.0" radius opposite a 3.0" radius. The 3.0”radius includes a 0.375* deep x .032”wide radiused slot. Also contains a 0° reference point for checking exit point on wedge, and a .125”diameter through hole and corresponding markings at 45°, 60 and 70° for measuring actual refracted angle.
