High Precision Coating and Substrate Thickness at the Same Time Ultrasonic Thickness Gauge

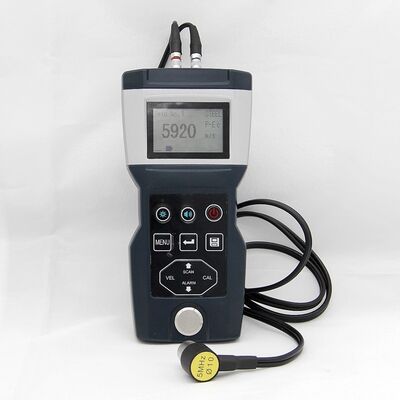

TG-3250H is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
It can test coating thickness and basic material thickness at the same time.
Main Functions:
l Support Pulse-Echo, Echo-Echo, Interface-Echo, E-C coating thickness testing, C-E coating and basic material testing and AUTO 6 kinds measurement mode, gain adjustable
l Scan mode, min/max capture mode, differential mode & alarm mode support
l Sound velocity calibration by known thickness
l Storage capacity of 1000 measurements with thickness, velocity, time, etc.
l Communicate with PC or smart phones, support online measurement & command control (OC version)
Features:
l High precision timing chip & V-Path model used for precision measurement
l Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
l Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
l Bluetooth & Mini-USB interface for printing & communication, host software upgradable
Technical Parameters
|
Measure Range
|
0.75~400 mm (Steel)
|
Sound Velocity Range
|
1 ~ 19999 m/s
|
|
Resolution
|
0.001mm / 0.0001inches
|
Accuracy
|
0.03mm or 0.3%*H
|
|
Measuring Period
|
4 times per second
|
Probe Frequency
|
2MHz,3MHz,5MHz,7.5MHz
|
|
Calibration Mode
|
Probe Calibration & Two Point Calibration
|
Calibration block
|
4.000mm(Steel)
|
|
Measurement Mode
|
P-E, I-E, E-E, E-C, C-E
|
Gain Adjustable
|
16 Stages
|
|
Measuring Mode
|
Single point, scan, min/max capture, differential, alarm
|
Data Storage
|
1000 measurements, including thickness, sound velocity, time, etc.
|
|
Display
|
English / Chinese selectable,
FSTN LCD Display with backlight
|
Display Content
|
Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc.
|
|
Communication
|
Bluetooth & Mini-USB interface, virtual serial port protocol
|
Print
|
Optional portable Bluetooth thermal printers
|
|
Power Supply
|
3.7V Li-Ion chargeable battery
|
Power off
|
Timeout power off, low battery power off
|
|
Usage Temperature
|
-10 ~ 50 °C
|
Storage Temperature
|
-30 ~ 60 °C
|
|
Size
|
157mm*78mm*37mm
|
Weight
|
About 260g
|
|
Shell Material
|
ABS & PC alloy
|
Box Material
|
ABS (IK08 / IP67)
|
Probe Parameters
|
Label
|
5M Φ10
|
5M PT-08
|
2M ZT-12
|
7.5M PT-06
|
3M GT-12
|
|
Measure Range (Steel)
|
0.8~300 mm
|
0.8~300 mm
|
3.0~400 mm
|
0.75~50 mm
|
2.0~200 mm
|
|
Min. Measure Diameter
|
Ø25 x 3 mm
|
Ø20 x 1.2 mm
|
Ø30 x 4 mm
|
Ø15 x 1.2 mm
|
Ø25 x 3 mm
|
|
Probe Diameter
|
13mm
|
11mm
|
17mm
|
9mm
|
15mm
|
|
Effective area Diameter
|
10mm
|
8mm
|
12mm
|
6mm
|
12mm
|
|
Probe Frequency
|
5MHz
|
5MHz
|
2MHz
|
7.5MHz
|
3MHz
|
|
Contact Temperature
|
-10~60°C
|
-10~60°C
|
-10~60°C
|
-10~60°C
|
-10~310°C
|
Version Comparison
|
Version
|
Measurement Mode
|
Thru-paint measurement
|
Measure Coatings
|
|
Basic
|
P-E
|
x
|
x
|
|
Standard
|
P-E, I-E, E-E
|
√
|
x
|
|
Advanced
|
P-E, I-E, E-E, E-C, C-E
|
√
|
√
|
