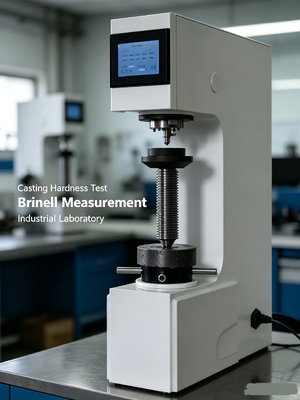

HB-3000S(H) Touch Screen Electronic Brinell Hardness Tester Automatic Calculation 8~650HBW 10 Levels Test Force Metal Hardness Testing Machine
Advantages:
1. Equipped with touch screen easy for operation and nice customer experience
Compared with the digital tube of traditional electronic brinell, Touch screen interface is simple, intuitive, without training to operate.
2. Built-in hardness value calculation in the tester.
After the hardness measurement, inputting the value of D1 and D2, then automatically calculate hardness value without looking up in the test value table.
Technical Specifications:
|
Model
|
HB-3000S(H)
|
|
Brinell Scale
|
HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100,HBW10/1500 HBW10/3000 HBW10/250 HBW10/500 HBW10/1000
|
|
Testing Force
|
62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)
250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(9807N)
1500kgf(14710N)3000kgf(29420N)
|
|
Max Height of Specimen
|
400mm
|
|
Min Measuring Unit
|
0.005mm
|
|
dwell time
|
0~60s
|
|
Hardness testing Range
|
8~650HBW
|
|
Magnification of Microscope
|
20X
|
|
Carried Standard
|
EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150
|
|
Distance of Indenter to outer wall
|
160mm
|
|
Indication of Hardness Value
|
automatic calculation
|
|
Power supply
|
AC220+5%,50~60Hz
|
|
Overall Dimension (mm)
|
550*210*975mm
|
|
Net Weight
|
About 130kg
|
Main Features:
It adopts the closed loop sensor loading, the electronic control system, has 10 levels test force.
The machine has high precision, high repeatability and stability, simple operation, high cost performance, etc.
Compared with electronic brinell, it also has more advantages feature as follows,
Application areas:
Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,
Workpieces application:
Non-hardened steel, cast iron, non-ferrous metals, alloys bearing ,plates, sheets, motor blocks, rails, rings, bars, tires, wheels, castings
Accessories:
|
Name
|
Quantity
|
Name
|
Quantity
|
|
Measurement microscope
|
1
|
Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter
|
Each 1
|
|
Standard Blocks
|
3
|
Large, Medium, “V” shaped Testing Table
|
Each 1
|
|
Power Cable
|
1
|
Product certificate, Printer Manual
|
Each 1
|
